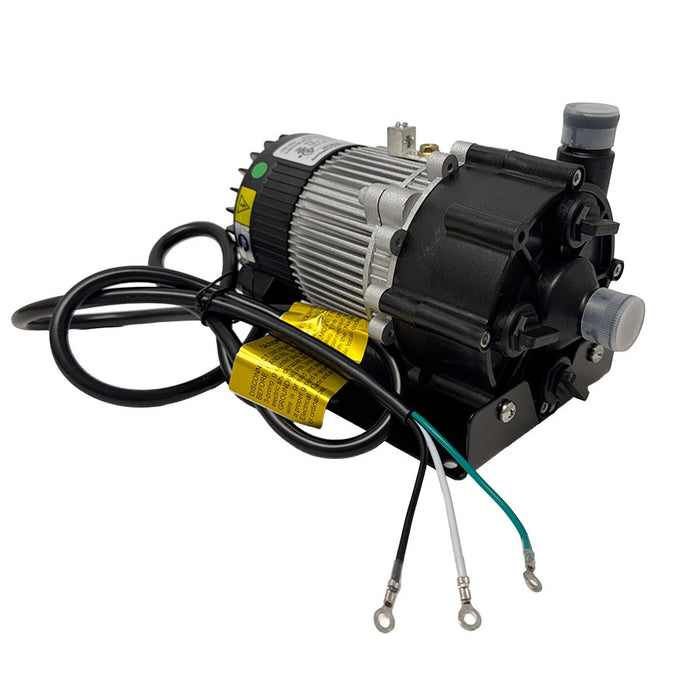

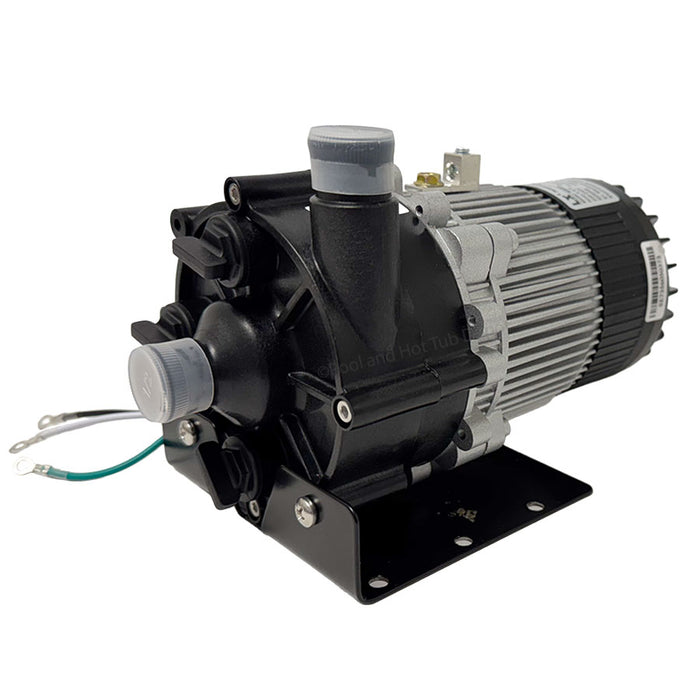

LX-E10 Circulation Pump, 230V, 3/4 Barb

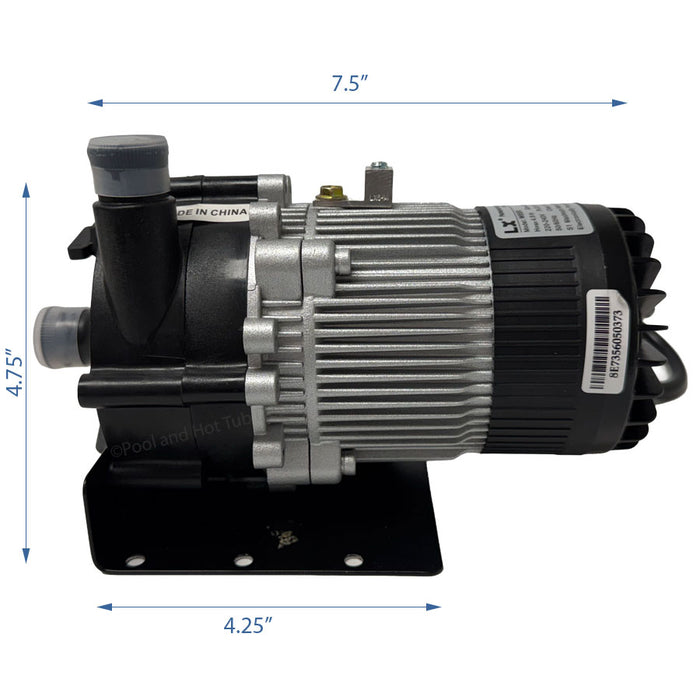

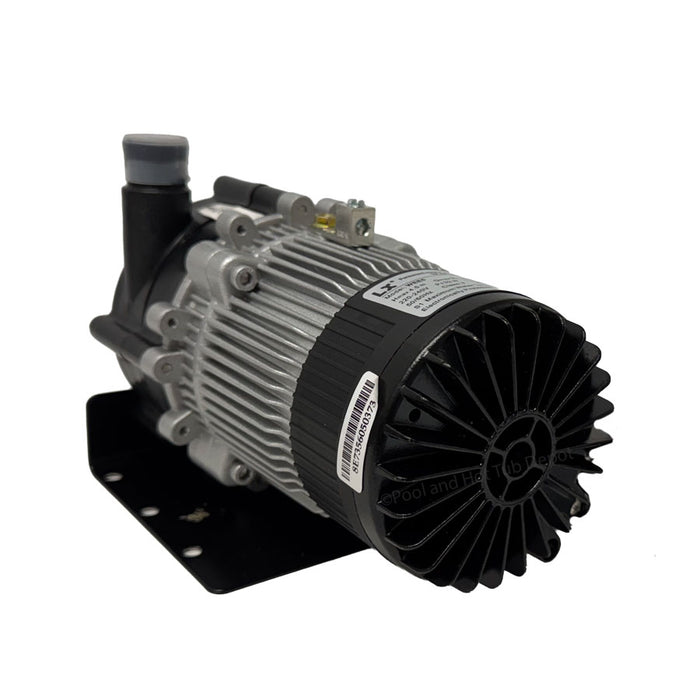

The LX E10 circulation pump is a 230-volt unit with 3/4" barb connections designed to replace the Laing-Goulds E10 pump in hot tubs with low-flow heaters. Unlike the Laing E10, which uses a computer-controlled magnetic coil to spin a "donut magnet" impeller, this LX model features a traditional motor shaft. By using a physical shaft to drive the impeller internally, the LX pump offers a more durable design and a longer service life. Confirm your spa has room for this pump which has a slightly large motor, dimension in product image.

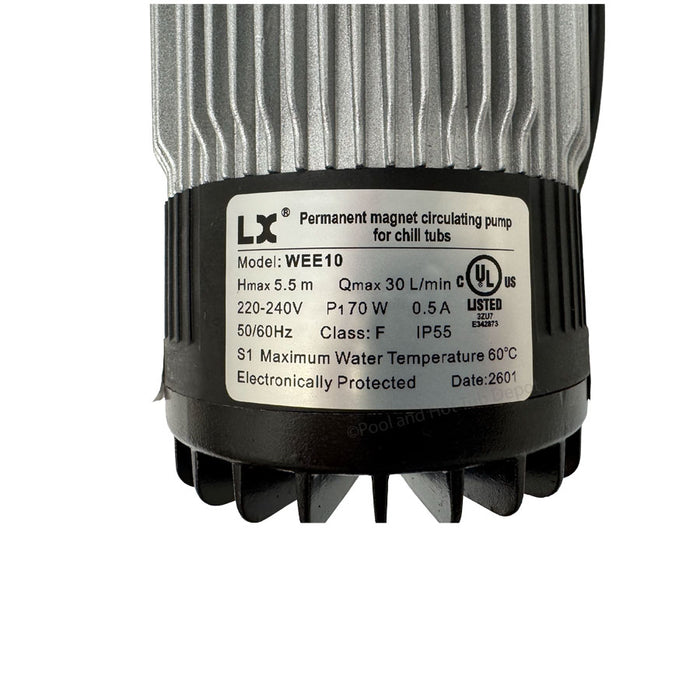

Details:

• LX P/N: LX-WEE10-220
• Brand: LX
• Volts: 220 - 240 volts ac
• Amps: FLA 0.5A
• Connections: 3/4" Barb
• Cord: 43" Long with no plug*
• Electrical Certification: ULc for Canada
• Applications: Hot tubs only
• Max flow rate: 8 GPM (30 L/min)
• Not self priming, must site below water level

*The plug cord from your existing pump can be spliced to this pump cord. The cord on this pump cannot be disconnected from inside back of the sealed motor.

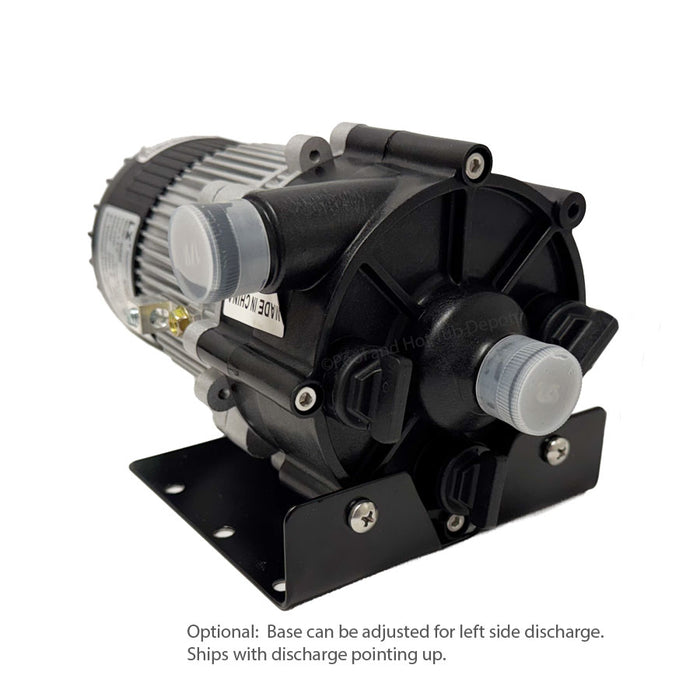

Expert Tip from Jackie: The discharge on this pump can be rotated to point to the left. Simply remove the two screws from the front that hold the base to the pump, rotate pump a quarter turn, line up holes with base and fasten base to pump with the two screws. Also note, the LX E10 motor and wet end seal are not serviceable.
