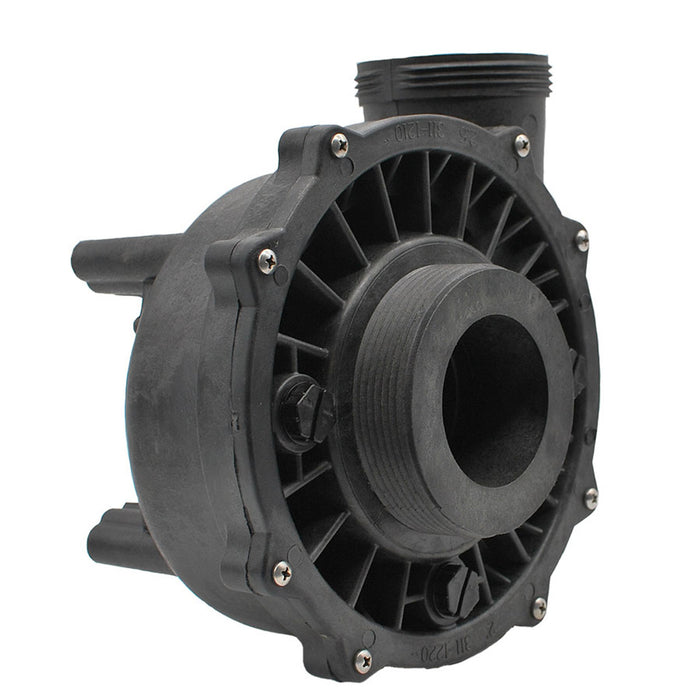

Waterway Executive 56, 2Hp Wet End, 2.5"

Waterway Executive 56 factory assembled hot tub pump wet end, rated for 2HP and is bolt on ready. Fits on 56 frame: A.O. Smith, Century, Marathon, Magnetec and U.S. Motors electric spa motors rated minimum 8.0 amps for high speed. Does not fit on any LX pump motors.

Wet End Threads

• 2.5" intake threads (Actual 3-5/8" OD).
• 2.0" discharge threads (Actual 3.0" OD).

Bolt On Spacing

• Bolt on spacing 4-1/8" centre to centre
• Fits 56 frame spa pump motors
• Does not fit LX pump motors

Wet End assembly

• Ships factory assembled, bolt on ready
• Assembled wet end includes parts shown

Fits Executive 56 Models:

• PF-20-2N22C, Pump P/N 3720821-13
• PF-10-2N22M, Pump P/N 3720821-13
• PF-20-2N22C, Pump P/N 3720821-13
• PF-10-1N22M, Pump P/N 3720821-13

Whats Included:

• 1 x Waterway wet end P/N 310-1480

Product Note:

• Optional barb P/N 672-4350 Sold Separately

For use in hot tubs only

Important:
Please verify your motor frame and high speed amp rating to ensure compatibility. Does not fit LX pump motors or Waterway pumps with part number ending in : -0D, -1D, -0V, -1V and -0T.
